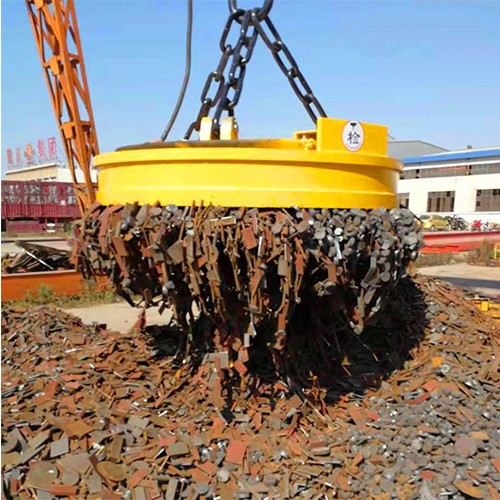

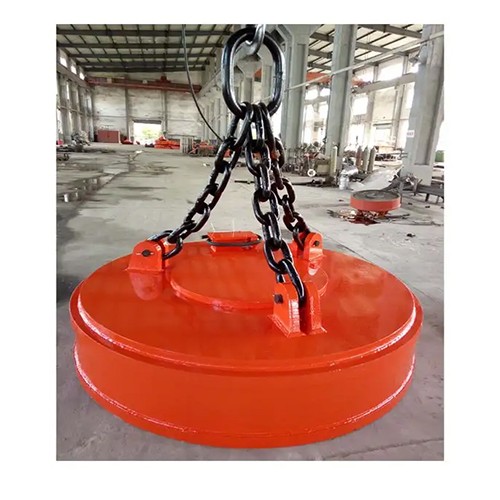

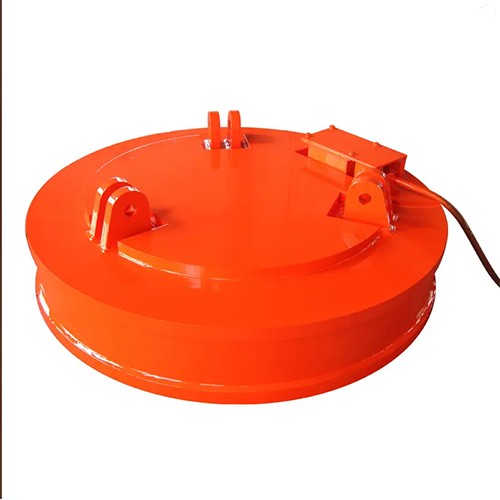

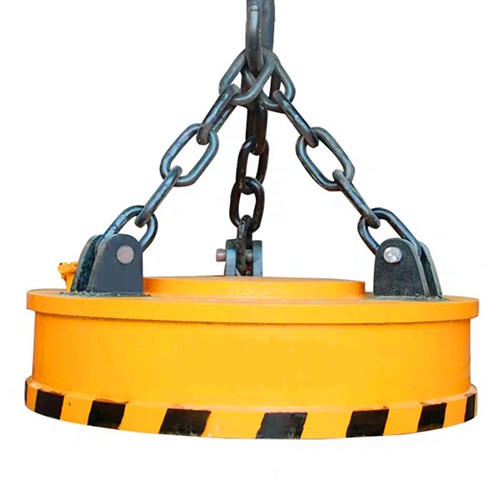

MW5 High-temperature series lifting electromagnets for handing scraps

MW5 High-temperature series lifting electromagnets for handing scraps

1.The lifting electromagnets adopts a special heat-resistance treatment so that it can handle scraps below 680 degree.
2.The coil is made of aluminum wire and qualified insulation materials. It has fine insulation structure so that the coil is not easy to broke down.

Features:

1. The coil is made of aluminum wire and qualified insulation materials. It has fine insulation structure so that the coil is not easy to broke down.

2. The electromagnet adopts a special heat-resistance treatment so that it can handle scraps below 680 degree.

Main Specifications:

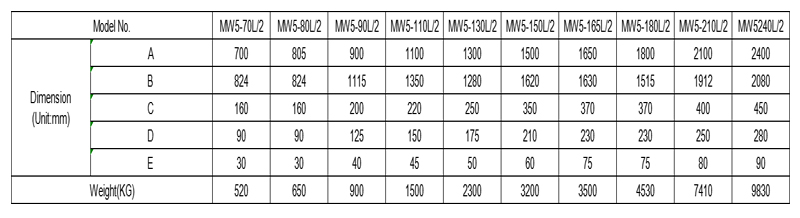

The dimensions and weights of MW5 high temperature Series

Model No.		MW5-70L/2	MW5-80L/2	MW5-90L/2	MW5-110L/2	MW5-130L/2	MW5-150L/2
Dimension (Unit:mm)	A	700	805	900	1100	1300	1500
	B	824	824	1115	1350	1280	1620
	C	160	160	200	220	250	350
	D	90	90	125	150	175	210
	E	30	30	40	45	50	60
Weight(KG)		520	650	900	1500	2300	3200

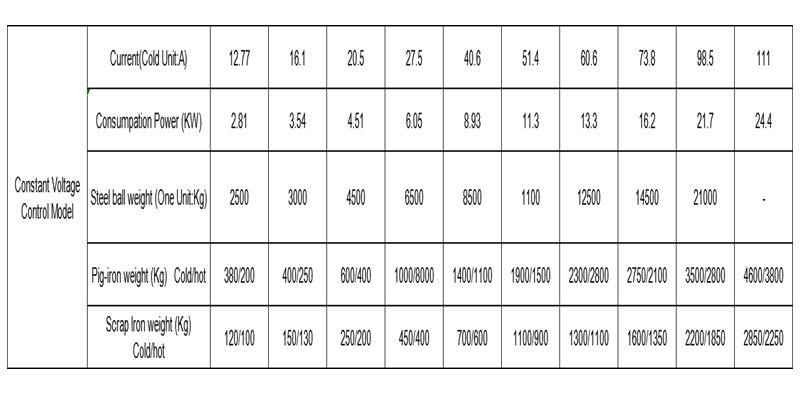

Electric Power&Lifting Capacity (Cold/Hot) of MW5 Series

Constant Voltage Control Model	Current(Cold Unit:A)	12.77	16.1	20.5	27.5	40.6	51.4
	Consumpation Power (KW)	2.81	3.54	4.51	6.05	8.93	11.3
	Steel ball weight (One Unit:Kg)	2500	3000	4500	6500	8500	1100
	Pig-iron weight (Kg) Cold/hot	380/200	400/250	600/400	1000/8000	1400/1100	1900/1500
	Scrap Iron weight (Kg) Cold/hot	120/100	150/130	250/200	450/400	700/600	1100/900
