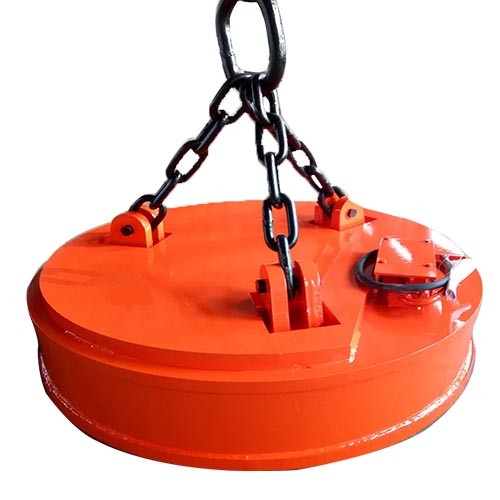

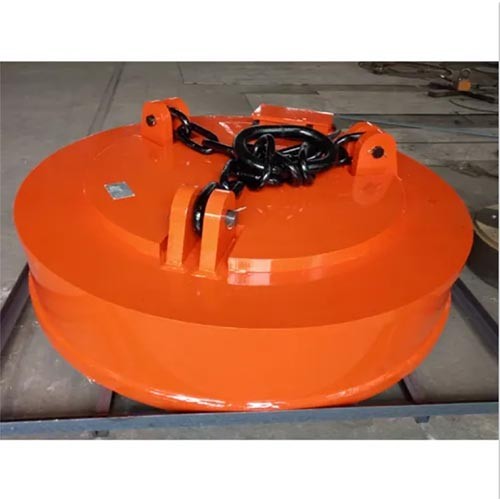

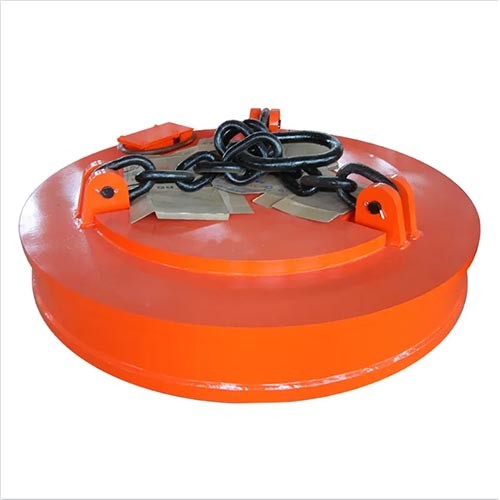

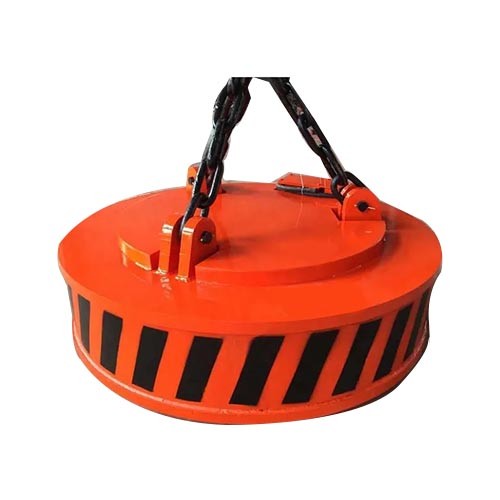

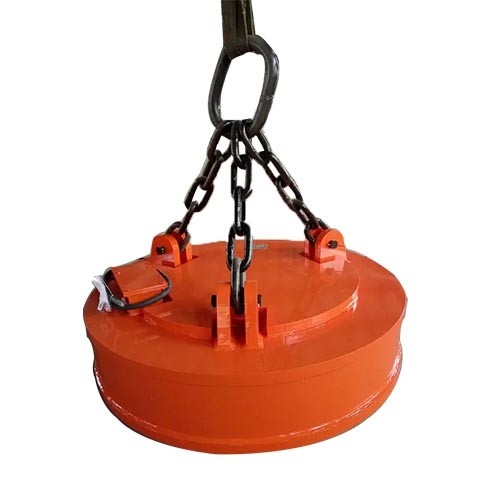

MW5 Standard series Lifting electromagnet for handing scrapes

MW5 Standard series Lifting electromagnet for handing scrapes

This type adopts a special design magnetic circuit which has large air space and magnetism density. It is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance& heat-proof. It also has the characteristics of light weight,low power consumption, high lifting capacity and long serving lift.

Features:

1. This type adopts a special design magnetic circuit which has large air space and magnetism density. It is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance& heat-proof. It also has the characteristics of light weight,low power consumption, high lifting capacity and long serving lift.

2. This type has fine insulation structure. The insulation treatments adopt the vacuum trying&glue filling, Which has improved the electrical and mechanical performance of the coils. The insulation grade can reach class special C.

3. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.

4. With simple structure reliability, it is suitable for working with all kinds of lifting equipment.

Main Specifications:

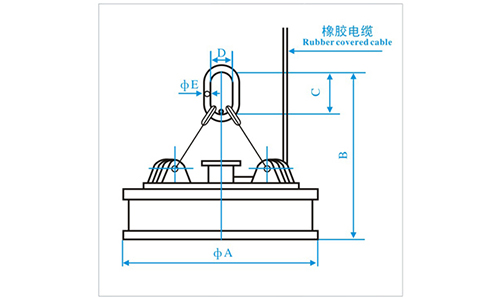

The dimensions and weights of MW5 Series
Model No.		MW5-70L/1	MW5-80L/1	MW5-90L/1	MW5-110L/1	MW5-130L/1	MW5-150L/1	MW5-165L/1	MW5-180L/1	MW5-210L/1	MW5-240-L/1
Dimension (Unit:mm)	A	700	805	900	1100	1300	1500	1650	1800	2100	2400
	B	800	800	1090	1140	1240	1250	1590	1490	1860	2020
	C	160	160	200	220	250	350	370	370	400	450
	D	90	90	125	150	175	210	230	230	250	280
	E	30	30	40	45	50	60	75	75	80	90
Weight(KG)		492	623	807	1380	2060	2830	3245	4230	7015	9137
Electric Power&Lifting Capacity (Cold/Hot) of MW5 Series
Constant Voltage Control Model	Current(Cold Unit:A)	15	18	26.6	35	54	71.2	75	102.4	129	154
	Consumpation Power (KW)	3.3	3.96	5.85	7.7	11.9	15.6	16.5	22.5	28.4	33.9
	Steel ball weight (One Unit:Kg)	2500	3000	4500	6500	8500	1100	12500	14500	21000	-
	Pig-iron weight (Kg)	380/200	480/250	600/400	1000/800	1400/1100	1900/1500	2300/2800	2750/2100	3500/2800	4800/3800
	Scrap Iron weight (Kg)	120/100	150/130	250/200	450/400	700/600	1100/900	1300/1100	1600/1350	2200/1850	2850/2250
Strong Excitation Model	Current(Cold/Hot Unit:A)	-	-	-	46.3/32	71.3/49	93.8/64.7	98.9/68.2	135/93	162/112	175/121
	Consumpation Power (KW)	-	-	-	13.4/6.4	20.7/9.8	27.2/12.9	28.7/13.6	39.1/18.6	47/22.4	50.8/24.2
	Pig-iron weight （Kg)	-	-	-	1050/900	1500/1250	2000/1700	2500/2100	2900/2400	3700/3100	5000/4200
