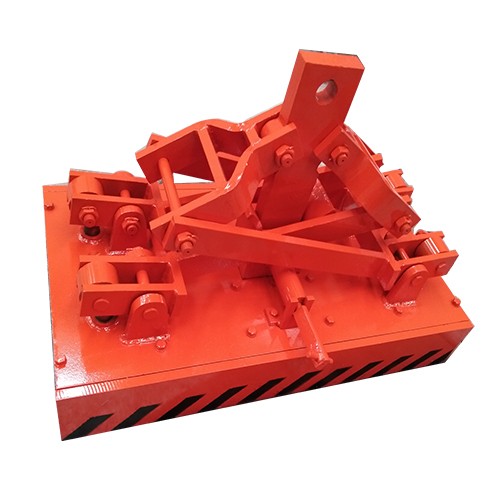

YX3 Ejector pin type Permanent magnets lifting equipment for ship building factory
This permagnent magnets is not suitable for thin plates and small workpieces.
No electricity, No power outage risk, long life.
Features:
It is a traditional permanent magnet lifting equipment.automatic circulating suction and lifting materials. Adopt ratchet wheel and ejector pin structure,automatic circulating suction and discharging materials.
This model is not suitable for thin plates and small workpieces.
No electricity, No power outage risk, long life.
Application:
It wildly used in ship building factory, Riveting welding plant, warehouse, structure industries, for lifting more thick slabs.

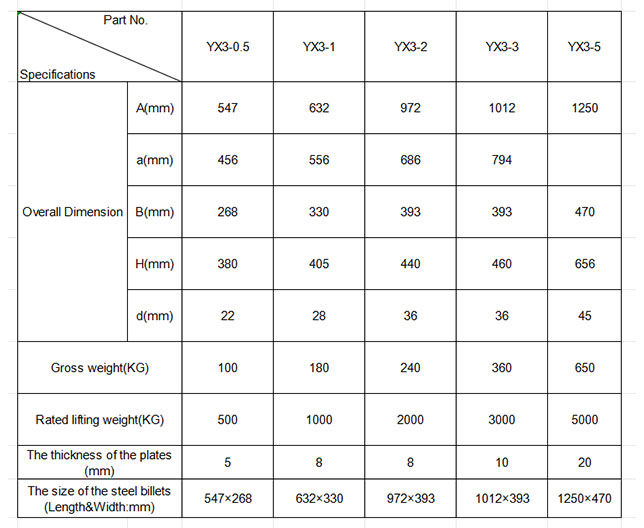

| Technical Specification: | ||||||
| Part No. Specifications | YX3-0.5 | YX3-1 | YX3-2 | YX3-3 | YX3-5 | |

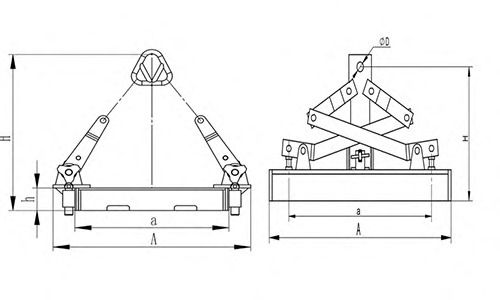

| Overall Dimension | A(mm) | 547 | 632 | 972 | 1012 | 1250 |
| a(mm) | 456 | 556 | 686 | 794 | ||
| B(mm) | 268 | 330 | 393 | 393 | 470 | |
| H(mm) | 380 | 405 | 440 | 460 | 656 | |
| d(mm) | 22 | 28 | 36 | 36 | 45 | |
| Gross weight(KG) | 100 | 180 | 240 | 360 | 650 | |
| Rated lifting weight(KG) | 500 | 1000 | 2000 | 3000 | 5000 | |
| The thickness of the plates (mm) | 5 | 8 | 8 | 10 | 20 | |
| The size of the steel billets (Length&Width:mm) | 547×268 | 632×330 | 972×393 | 1012×393 | 1250×470 | |
