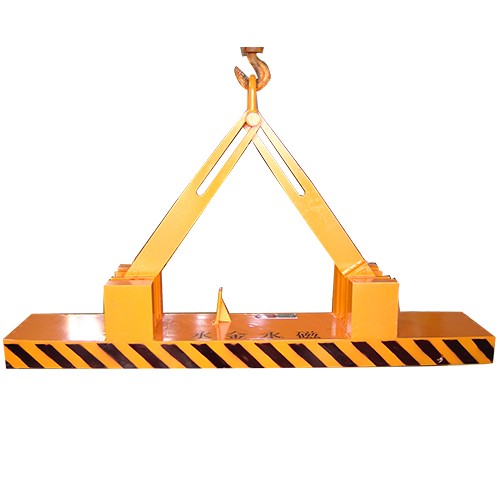

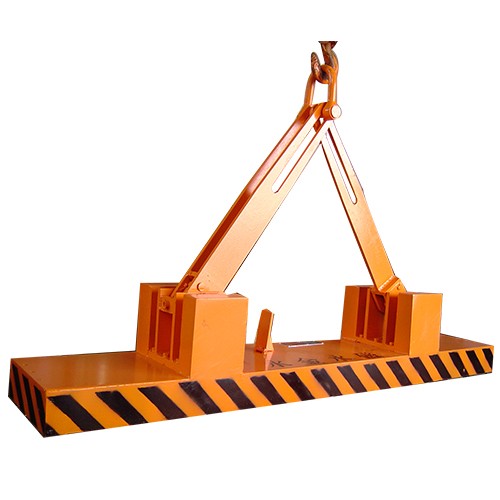

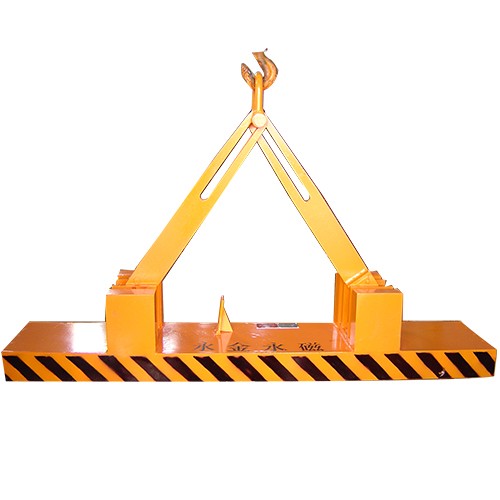

YC2-5L 5 Tons Magnetic lifting equipment for steel billets

Features:

This type is made of permanent magnet, that which it is of automatic degaussing permanent magnet lifting equipment. Adopt special magnetic circuit design,

The structure is more long than conventional products.

With large adsorption and deep magnetic penetration,It would be more stability.

No electricity, No power outage risk, long life.

By using the up and down of the crane hook, It can generate magnetism and degauss magnetism, to achieve the purpose of automatic suction

And discharge of the steel boards.

Porvides strong and stable magnetic force with easy operation and in crease productivity.

It can be used as a single unit or as a combination of multiple units.

It is suitalbe for lifting medium, thin untra-wide plates, steel billets,steel rails.

Application:

It wildly used in Steel industries, foundries, fabrication factories, shipyards and transport industries.

How to choose the model and quantity of our lifting equipments as a combination of several units?

Part no. of YC2-2/L is suitable for steel billets of that the thicknesses are during 5-25mm, The width of the plates are less than 2.5 meters.

According to the length of the steel billets, The length of each lifting equipment should be between 2 meters.

Part no. of YC2-3/L is suitable for steel billets of that the thicknesses are during 12-30mm, The width of the plates are less than 3 meters.

According to the length of the steel billets, The length of each lifting equipment should be between 3 meters.
